Base Alternatives

Core Foundations Kit

DIY-friendly Foundations for your hot tubs, pools, saunas, sleeping barrels, and more!

Introducing Core’s Heavy Duty Grid foundation – the ultimate solution for your hot tubs, tiny homes, and other various heavy duty applications. Engineered to withstand the toughest conditions, this grid system is designed to provide exceptional load-bearing capacity, stability, and durability.

• CORE Recreational foundation kits consist of 10 interlocking panels (39.37” x 22.63”)
• Cell Size: 60 mm wide x 40 mm deep
• Covers: ~62 sq ft/ pack
• Each pack covers an area at ~90.55" x 98.43" (2.3 m x 2.5 m)



• Unique click system securely locks each tile and amplifies weight distribution across many tiles.
• Lay in ‘brick bond’ style for maximum stability and strength.
• Cuts easily with hand or circular saw.
• Use half tiles to form straight edges (no waste).
• Most paving types can be laid or glued directly onto EASYClickBase.
• Paving can be secured in place by EASYEdging. Available in a variety of sizes to suit most paving styles, some of which can be bent around 90°.

• No more deep, arduous excavations
• Resistant to movement even in cold climates
• These foam panels are easy to cut and feature drainage holes and canals for water control and an overlap edge for stability
• 20 2/8” X 36 3/8” X 17mm
• PPE Grade foam

• For concrete pavers, porcelain tiles, and natural stone
• Equivalent to 288 lbs (130 kg) of crushed stone
• Replaces 6 in (15 cm) of compacted crushed stone
• Evacuates water through the channel
• Manufactured using lightweight high-density polypropylene
• Environment-friendly and 100% recyclable
• Extremely durable, will not degrade in the ground
• Designed with LOCK-N-GO tongue and groove system
• Gator Base Insulation has an R-Value of 3.6 (per inch thickness)
• Will significantly reduce the number of freeze and thaw cycles
• For pedestrian use only

• Use with all Gator Base installation
• Use with all the Gator Edges: Rigid and Flex, Mini and Tile
• Reinforces the outside perimeter
• Creates a strong lateral support
• Locking all components into one
• Use GATOR BASE SCREWS to fasten Gator Edge to Gator Base

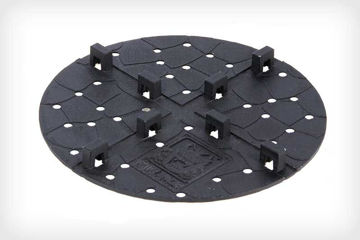

• Provides uniform spacing, alignment with horizontal and vertical stability to porcelain tile installations.
• The spacer disk can be cut into either a half or a quarter-unit (using an utility knife) to be used along the edge of a building or the Gator Tile Edge.
• Simply break the spacer bar’s to obtain a flat disk, when spacer is needed on larger porcelain tile.

• Provides uniform spacing, alignment with horizontal and vertical stability to porcelain tile installations.
• The spacer disk can be cut into either a half or a quarter-unit (using an utility knife) to be used along the edge of a building or the Gator Tile Edge.
• Simply break the spacer bar’s to obtain a flat disk, when spacer is needed on larger porcelain tile.

These spacers are made of durable plastic and will guarantee even space gaps between each porcelain tile, making installations faster and easier.

100/Box
