Drainline

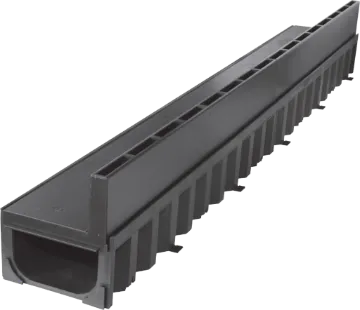

• HexaLine Brickslot is a recyclable polypropylene slotted trench drain system that provides effective, yet discreet, slot drainage in domestic paver or tile installation. Cellular construction allows for simple “pushfit” of channels and accessories
• Access to system for maintenance is through the removable cover on the corner unit
• Suitable for pedestrian/light vehicle traffic applications
• Tapered 0.39 inches inlet to prevent blockage
• ADA-compliant
• Off-set slot enables drainage location adjacent to walls and door threshold
• Cover compatible with pavers up to 2.34” deep

Works with ACO Drainline 100 and Hexaline systems.  Channel sold separately.

• Discreet 10mm wide inlet slot
• For brick or stone pavers up to a depth of 60mm
• Suitable for use with K100, KS100, H100K, H100KS channels
• Manufactured from either galvanised steel or Grade 304 stainless steel
• Galvanised steel for use in general purpose applications
• Stainless steel used for aesthetics and/or its corrosion resistant properties

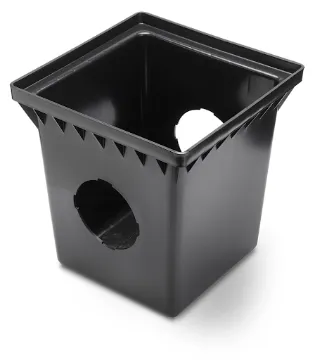

• Designed to catch overflow water and debris accumulated in the sloped trench drain
• Outfitted with knock outs on the side to allow for proper drainage
• Also supplied with a plastic trash bucket to collect debris

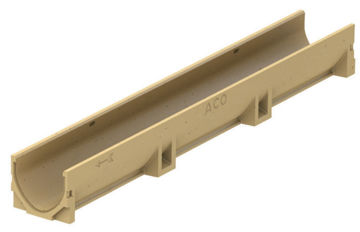

Polymer concrete channel featuring concrete anchors hold channel securely in the ground, male/female interlocking end details, and a bottom knockout to fit 4” & 6” pipe

In-line polymer concrete catch basin for maximum hydraulic output featuring a knockout section to fit 4” & 6” pipe
